Description

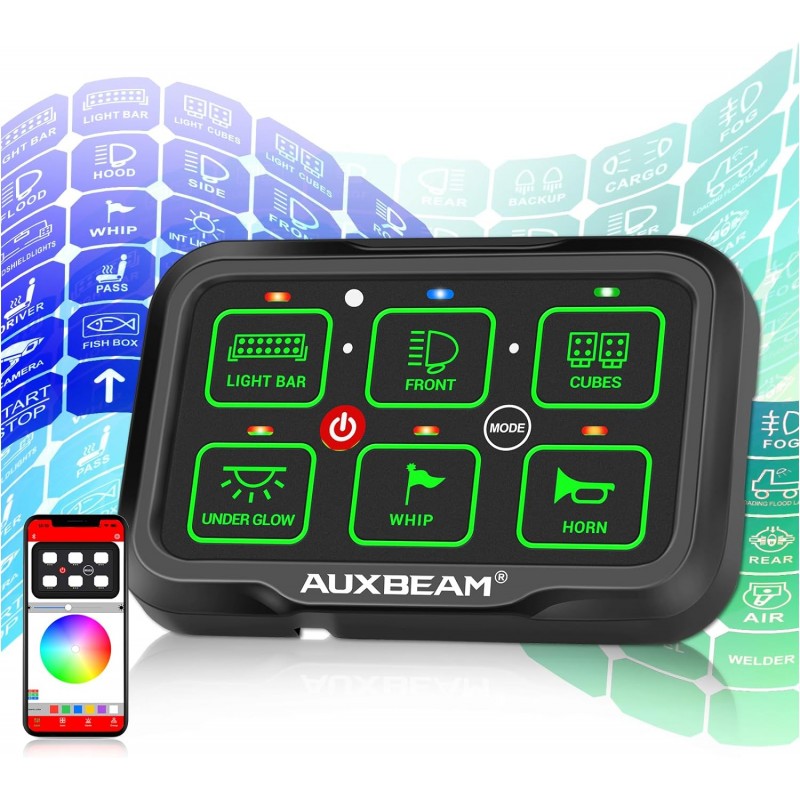

Auxbeam 6 compartment switch panel
The Bluetooth RGB 6 Gang switch panel is now available!
We do some big upgrades on switch panel! The latest system can be operated via switch panel or smartphone. It’s not limited to just controlling the “ON/OFF” of the LED Lights or electrical devices. Change the backlight color and lighting modes to have fun programming with Auxbeam latest RGB switch panel!
★ Upgraded Functions:
✔ RGB backlight - Unlimited color options match dash lighting and vehicle
✔ 3 mode setting - Toggle/ Momentary/ Pulsed
✔ Bluetooth APP control - Access to accessories no matter whether you are in the vehicle
✔ 1'' Larger button - Upgraded 1 inch larger button, 1-second blind operation
✔ Manual backlit off - Turn off the backlight when it's daytime or when it's not necessary
✔ Group setting - Set up a group via APP to control 2 or more lights at the same time
✔ DIY switch panel - 60pcs stickers/ 200 default icons/ custom picture from your own album
✔ Waterproof cover - Protect the switch panel from rain & snow weather or water
✔ 10FT wiring harness - Extend from 9FT to 10FT
Specification:
Working voltage: DC 12-24V
Max current: 60A
Rated voltage: 12V 20A / 24V 10A
Operating at 12 Volts: max power rating of 720W
Operating at 24 Volts: max power rating of 1400W
Switch operation: On-Off
Operating temperature: -40°C - +105°C/-40℉ - +221℉
Waterproof rating: IP65
Features:
▶AR-600 RGB Switch Panel
6-Gang one-sided outlet switch panel. It allows you to control up to 6 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.
2 control methods - Switch panel & Bluetooth APP, work synchronously. Built-in Bluetooth module allows you to program and control the system anytime & anywhere.
3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
