Ford Ranger Grille insert with Lazerlamps ST12Evo

Ford Ranger Grille insert with Lazerlamps ST12Evo

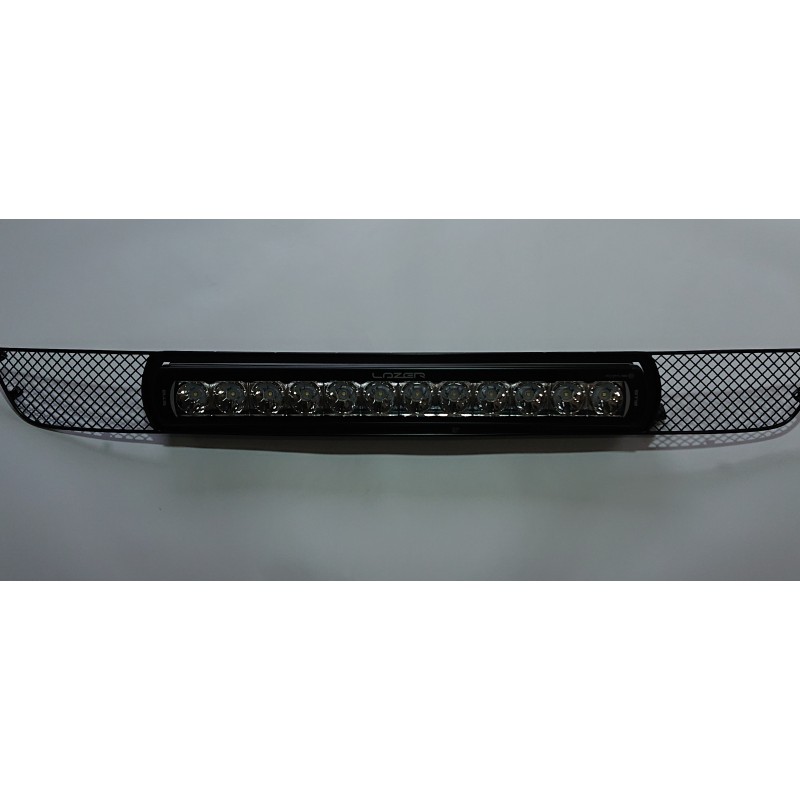

Special grill insert in mesh design fits exactly for mounting in the lower grill insert under the number plate, is simply fixed with 4 small screws.

Stainless steel with black matt powder coating, delivered with screws.

Compatible with ACC right (year of construction until 2019) not compatible with ACC center (year of construction from 2020)

LAZER LAMPS ST-12 Evolution

LED driving lamp with E licence plate, reference number 27.5. Twelve 11 W high-density LEDs. Hybrid light distribution. Two ST12 Evolution headlights are as powerful as a large LED light bar and can even be used legally in road traffic.

With a luminous flux of 12,408 lumen, the Lazer Lamps ST12 Evolution headlamp has as much power as four xenon driving lamps or is even more powerful than twelve H4 halogen driving lamps. The hybrid light distribution ensures excellent range and wide illumination in the near and medium distance range, providing the driver with excellent night vision conditions. The range is an incredible 962 metres.

The power consumption is 144 watts. At 14.4 volts vehicle voltage the current is 10.0 amperes.

The headlamp has a width of 524 mm, a height of 64 mm and a depth of 68 mm. The weight is 1,634 gr.

ST EVOLUTION SERIES:

Lazer Lamps' ST Evolution series headlamps are the logical further development of the ST series, which is extremely successful and proven in the road and off-road market. The new evolution stage offers with its 11 Watt high-density LEDs even more performance, a longer range and an optimized light distribution. With the same width, the headlamps are now somewhat flatter in design and require considerably less installation depth. In addition, the ultra-robust and IP69K-certified headlamps are now available in a wider range: as versions with two, four, six, eight and twelve LEDs.

The headlamps with two LEDs are particularly attractive for motorcyclists and quad bikers, while two large ST12 Evolution headlamps can easily replace a conventional LED lightbar - and of course with genuine ECE approval as driving lamps and outstanding lazer performance.

These LED headlights are approved in Europe as additional lighting according to E9-E11 UNECE 112 !!

Scope of delivery :

Mesh grill insert with specific holder for LAZER LAMPS ST-12 Evolution

4 screws

Cable set with switch

radio controlled relais 40A with 2x remote control
