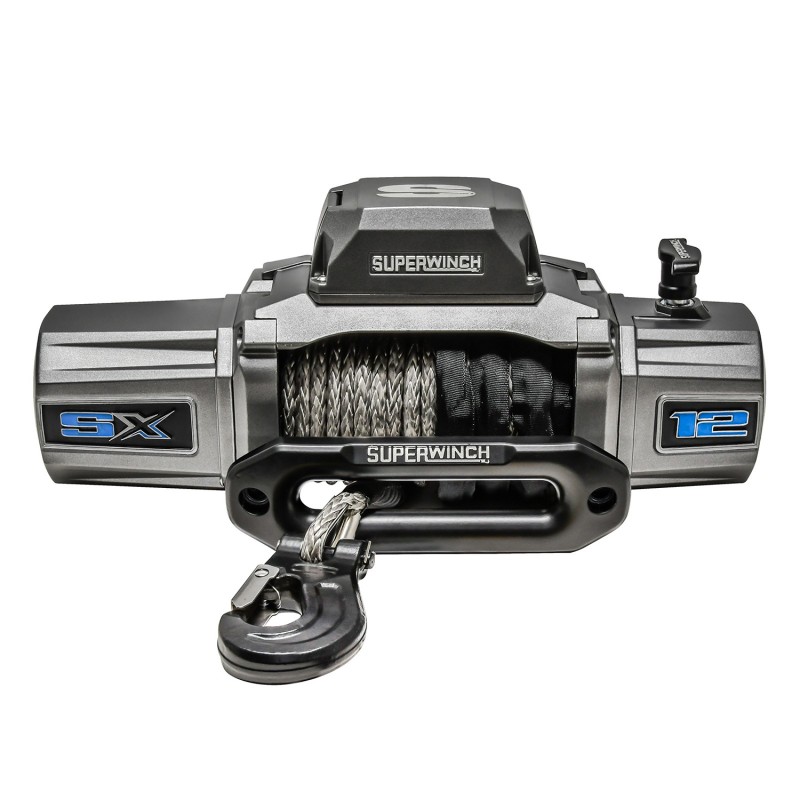

SUPERWINCH SX12SR with synthetic rope
The Superwinch SX 12 SR has a three-stage planetary gearbox, an automatic load holding brake with mechanical cone brake for large loads and a freewheel clutch for pulling the rope by hand. The Superwinch SX 10 SR 12V electric winch has waterproof sealed relays for high electrical currents that provide longer duty cycles. The rope drum has a patented lighting system.
It is used for commercial recovery of rolling loads.
The Superwinch SX 12 SR is supplied with a cable remote control 3,6m , a hand transmitter, a rope window, a relay box, battery cables and a synthetic fiber rope 9,5 mm - 24 m with safety hooks.
Item no. Superwinch 1712201
Rope speed [m/min] 7.1 -1.1
Pulling force [t] 5,4
Voltage [V] 12
Weight [kg] 28.2
Current consumption at full load [A] 379
